Service Rig 6

RIG CREW

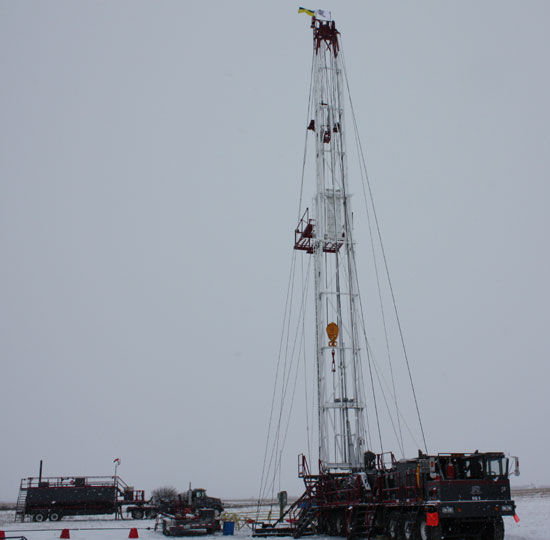

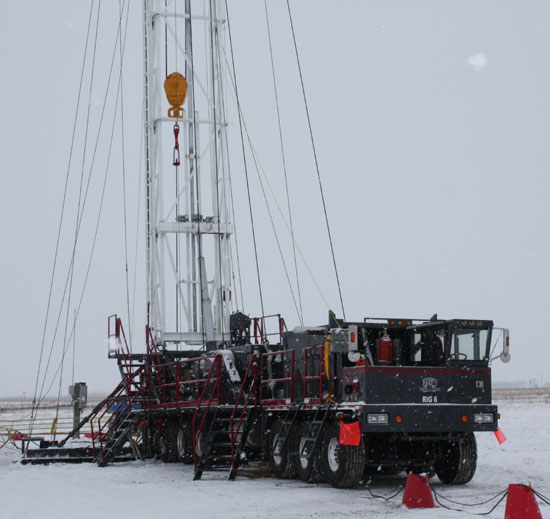

A new 2008 Empire 6 axle Carrier with an RG Petro Machinery JC18/11 Drawworks. Mobile Class ll Freestanding Double Tubing Rig.
Rig completely engineered for free standing.
42” x 10” ( 106.7cm x 25.4 cm) Main drum with an air disc auxiliary brake and crown saver. Drawworks rated to 13,100 ft. (4,000) meters.
450 hp QSX Cummins Diesel electronic environmentally friendly engine.
CLT5861-DB Allison Transmission
Dual man rated Hydraulic winches.
Oversized working floor 7ft. X 14 ft. (2.1 meters x 4.3 meters).
Extra fall arrest on rod basket for working at tubing board or on pump jacks.
Full cat walks on driller’s side and off driller’s side.
38” x 8” (96.5cm x 20.3cm) Sand line drum with 12,000 ft. (3,600 meters) of sand line.
Complete Class II 22 gallon (85 liter) accumulator and 7 1/16”, 3000 psi (21 mpa) double gate B.O.P. with workover spool.
Digital sandline counter (depthometer).
Rig is fully equipped to handle rods from 5/8” to 1 1/8” (16mm – 25mm).
Rig is fully equipped to handle pipe from 2 3/8” to 3 1/2” (60.3mm – 88.9mm).
Rig and all handling equipment Level IV inspected.
58-93 R Foster tubing tongs.
Complete lighting for night work.

2005 Granite CV Mack, 375 hp, 10 speed transmission.
Serva TPA 400 triplex pump – 5” (127mm) stroke, 5”(127mm) plunger, maximum output 10 bbls. per minute or 1.6 cubes per minute.
5,000 lb. (35,000 kpa) Fluid end.
3,000 lb. (21,000 kpa) 7 (seven) valve manifold lines.
4” x 3” Mission pump.
225 bbl.(35.7cubic meter) tank, complete with circulating trough, Poor Boy degasser and man rated winch on tank.
Electronic tank gauge, electronic stroke counter and electronic pressure gauge mounted in cab.

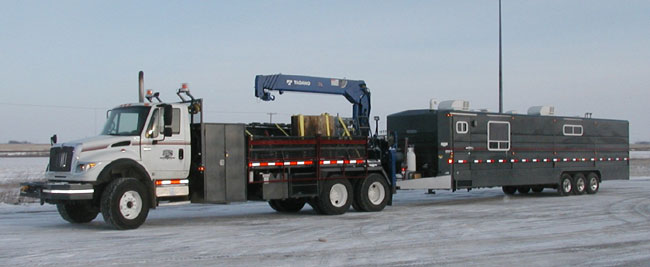

Norbert’s 36 ft. Doghouse
40 kw Isuzu light plant, 240 volt 3 phase.
8 ft. x 8 ft. Tool room with work bench and storage.
8 ft. x 18 ft. Change room, fully safety equipped.
Fridge, microwave, air conditioning & coffee pot.
8 ft. x 10 ft. Office with air conditioning and desks for Consultant and Rig Manager.
Completely safety equipped.
Bathroom with Insulet toilet.
